Process Trials and Development

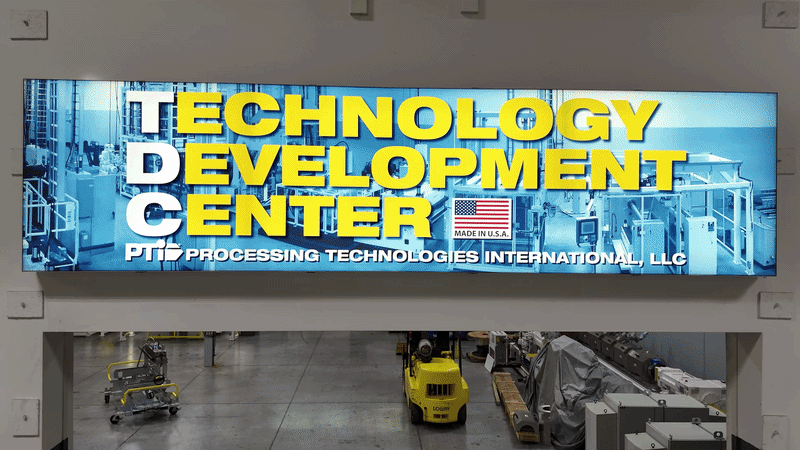

The facility features two separate full-scale production demo lines available for customer trials and system evaluations. In addition to classroom instruction, PTi provides hands-on training and troubleshooting support for conventional, high-speed, and twin screw extrusion systems.
Line #1: SGTSE MultiRESN™ Model 90mm-50D High Vacuum Twin Screw Extrusion system
-
Five component continuous gravimetric loss in weight blender/feeder
-
Dual bolt, 4 cavity and Dual bolt, 4 cavity continuous hydraulic screen changer with backflush
-
70” sheet die with 0.005” - 0.105” (0.127 mm - 2.667 mm) lip opening
-
G-SERIES® GCJ721824 configurable vertical J-stack roll stand
-
X-Ray sheet thickness gauge
-
AntiSTAT™ TRC-72 transfer roll coater; Anti-static coater/dryer for coating top, bottom or both sides
-
ASCW7484/2 semi-automatic cantilevered two position winder with accumulator
-
TITAN® Plus Integrated PLC Control System
-
Edge trim granulator system, plus two edge trim winders
Line #1: Capabilities
-
Capable of processing PET, PLA, PP, PS,PE,etc.
-
10 – 60+ mils PET, PLA, PS
-
14 – 60+ mils PP, HDPE, LDPE
-
50”- 64” net sheet width (1270 mm - 1625mm)
-
6” diameter cores (150 mm)
-
48” (1000 mm) max roll diameter
-
Maximum line speed 160 fpm (49 mpm)
Line #2: SUPER-G HighSPEED™ Model SGHS3500-36D High Speed Extrusion System
-
Four component continuous gravimetric blender/feeder
-
Dual bolt, 4 cavity continuous hydraulic screen changer
-
42” sheet die with 0.010” - 0.050” (0.25 - 2.80 mm) lip opening
-
G-SERIES® Model eGVD541818 vertical downstack cooling and polishing unit with 54” (1,524mm) roll face
-
X-Ray sheet thickness gauge
-
AntiSTAT™ TRC-54 transfer roll coater; Anti-static coater/dryer for coating top, bottom or both sides
-
ACW6640/2 cantilevered two position winder
-
TITAN® Plus Integrated PLC Control System
-
Edge trim granulator system, plus two edge trim winders
Line #2: Capabilities
-
Roll Diameters 12.0 – 48.00" (300 – 1200mm)
-
Face-widths 36.0 – 150.0” (900 – 3800 mm)
-
Direct driven rolls
-
Roll loads up to 1200 PLI (200 N/mm)
-
Vertical, J-Stack or Horizontal configurations
PTi University
The facility features two separate full-scale production demo lines available for customer trials and system evaluations. In addition to classroom instruction, PTi provides hands-on training and troubleshooting support for conventional, high-speed, and twin screw extrusion systems. PTi University offers leadership-guided walkthroughs of our equipment, providing customers with direct insight into machine design, operation, and performance. Customers develop a clear understanding of PTi’s control systems and how they drive efficient, reliable production.
OFFERING YOU THE BEST SOLUTION FOR YOUR EXTRUSION LINE
Processing Technologies International (PTi) is a global leader in high-performance sheet extrusion machinery. Engineered to exact standards, PTi systems feature innovative design solutions that deliver superior equipment performance and consistently produce sheet goods that meet the industry’s highest quality standards.
PTi offers a comprehensive range of products and services designed to support today’s sheet producers and the evolving demands of the future. While this overview highlights many available configurations and capabilities, it represents only a portion of the customized extrusion solutions PTi provides for a wide variety of applications.
