G-SERIES® Configurable Vertical

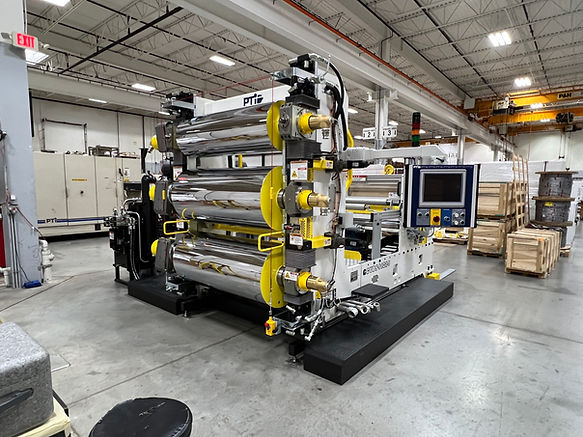

G-SERIES® Configurable Vertical roll stands are ideal for a wide range of sheet processing applications and offer many advance design features including hydraulic roll actuation, individually driven chrome rolls, precision roll gap positioning, high flow water circuits, fully adjustable control pendant operator interface cross-over catwalk and optional gauge scanner.

Each G-SERIES® roll stand offers all of the patented technology advantages. The expandable frame simplifies the addition of any downstream technology while minimizing operational interruption and re-engineering efforts from weeks to hours. The highlighted features illustrate the unique design elements that have been developed to date-including patented technologies.

Features

Manual gap positioning with integral rachet (US Pat. #8,152,509)
Precision spherical tapered roller bearings
Precision linear bearing mounted frame retraction (US Pat. #8,021,140)
Stationary roll temperature water circuits
Leveling pads for quick installation
Safety devices throughout
Frame structure permits high roll loads
Gauge scanner for thickness monitoring
Integral pull roll unit
Configurable frame

Roll stand Options

Spare Temperature Control Circuit
Hydraulic Roll Actuation
Boosted Air Roll Actuation
AUTOGAP™ Servo Hydraulic Roll Gap Adjustment
Telescoping Conveyors for Fixed Downstream equipment
Motorized Roll Gap Adjustment
Motorized Height Adjustment
Air Knife System for Thin Gauge (shown)
Pneumatic Start-Up Leader Winder
Water Cooled Pull Rolls, Idler Rolls
Auxiliary Cooling Rolls

OFFERING YOU THE BEST SOLUTION FOR YOUR EXTRUSION LINE

Processing Technologies International (PTi) is a global leader in high-performance sheet extrusion machinery. Engineered to exact standards, PTi systems feature innovative design solutions that deliver superior equipment performance and consistently produce sheet goods that meet the industry’s highest quality standards.

PTi offers a comprehensive range of products and services designed to support today’s sheet producers and the evolving demands of the future. While this overview highlights many available configurations and capabilities, it represents only a portion of the customized extrusion solutions PTi provides for a wide variety of applications.
