Lamination
PTi offers various designs for performing lamination functions for sheet production. These are categorized as primary nip for hot sheet lamination or an alternative downstream location for warm or cold sheet lamination. The substrate can be applied to either the top or bottom side of the sheet depending upon the specific requirement. Masking protective films are another option for downstream laminating of sheet to protect the surface of the sheet against cosmetic defects caused by product handling though various equipment stages.
State-of-the-art features:
1
AutoGAP™ Servo-Hydraulic Roll Gap Control delivers precise, repeatable adjustments for superior sheet quality
2
Motorized Height Adjustment simplifies line setup and adjustment for different product configurations US Pat #8,240,180
3
Rotary Edge Trim Station engineered for clean, efficient edge trim with minimal waste
4
Integrated catwalks and ladders for safe ergonomic operator access throughout
5
Chrome Roll Safety Lock-out Device US Pat. #9,139,393
6
Leveling Base US Pat. #8,021,140
7
Access doors throughout
Features
Patented M-ATEX™ (Multi-Axis Thermal Expansion) die
support features IDST™ (Integral Die Splitting Technology) shown with die in fully extended cleaning position.
Bottom-side lamination system designed for enhanced bond strength and versatility across resin types. Operator access doors for easy maintenance and setup.

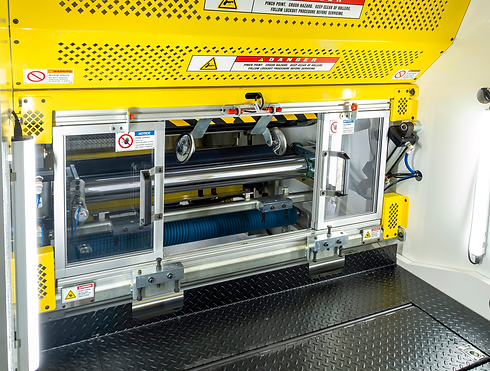

Enhanced operator access doors with electronic safety
interlocks allow safe and streamlined film thread-up.

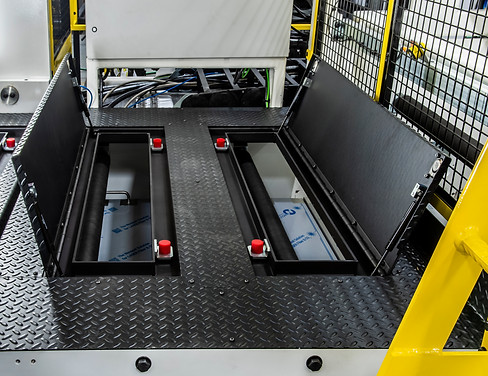

Integrated operator cross walk powder-coated diamond plate with flush-mounted access hatches for improved safety and convenience.
Optional offline cart to easily load and unload material.
OFFERING YOU THE BEST SOLUTION FOR YOUR EXTRUSION LINE
Processing Technologies International (PTi) is a global leader in high-performance sheet extrusion machinery. Engineered to exact standards, PTi systems feature innovative design solutions that deliver superior equipment performance and consistently produce sheet goods that meet the industry’s highest quality standards.
PTi offers a comprehensive range of products and services designed to support today’s sheet producers and the evolving demands of the future. While this overview highlights many available configurations and capabilities, it represents only a portion of the customized extrusion solutions PTi provides for a wide variety of applications.
