Downstream Components
PTi provides a selection of shears, stacking systems and sheet winding options designed to accommodate a comprehensive range of sheet production applications. From robotic style stackers (single or dual station); to fully automatic winders, PTi offers a single source solution for your sheet handling needs.
Sheers/ Stackers
PTi provides a selection of inline shears and stacking systems designed to effectively accommodate a comprehensive range of cut sheet production applications. These systems include fork style stackers with indexing tables; robotic style stackers (single or dual station); and H-frame suction cup style stackers for unidirectional stacking.
In-Line Squaring Shears
Low-profile, motor driven high-speed squaring shears for precise cut-to-length performance on plastic sheet. Available with a hump-style infeed conveyor for heavy-gauge applications.
-
Precision cutting on PP, PS, PET, ABS, and other thermoplastic sheet
-
High carbon/high chrome blades with multi-point adjustment for long blade life
-
Heavy duty clutch/brake with encoder for repeatable & accurate cuts
-
Air clamp hold-down and bowed inlet conveyor for consistent sheet control
-
Optional: Touch screen HMI for cut length and production control
Features
-
In-line shear for precise cuting of thick sheet
-
Dual station robotic stacker provides
versatile stacking options -

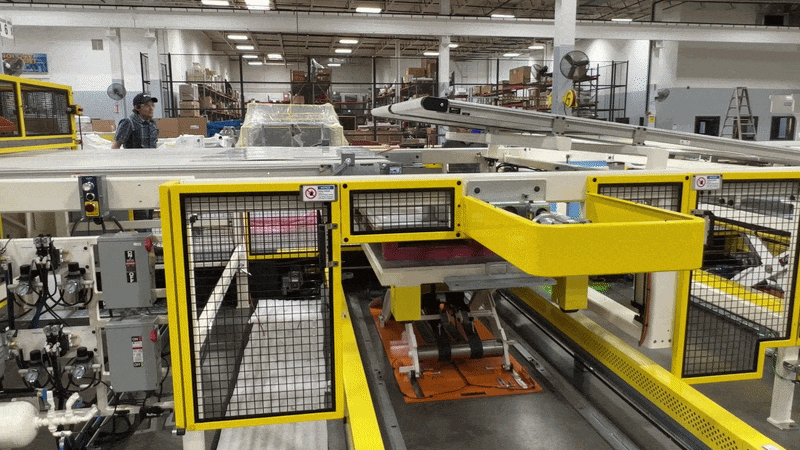

Auto sheet stackers come equipped with pallet indexing and removal features. (shown)
Stacking Systems
PTi stacking systems include TITAN® integrated PLC with touchscreen HMI and support sheet widths up to 120", lengths up to 180", and payloads up to 500 lbs. Optional upgrades: secondary stacking position, reject sheet exit conveyor, and motorized skid conveying.
Gantry Stackers
Heavy-duty 2-axis gantry robots with vacuum tool frames for large-format sheet. Continuous dual-pallet operation with automatic corner justification.
Fork Style Stackers with Indexing Tables
Simple, reliable stacking for moderate throughput lines. Retracting fork fingers drop each sheet onto the stack; an indexing table lowers incrementally to maintain consistent stack height.
Pivot Conveyor Stackers with Lift Tables
Compact two-position systems. Lift tables provide precise pallet height control; motorized trolleys for fast changeover.
Robotic Stackers
Multi-axis industrial robots with custom end effectors for automated sheet picking, transferring, and palletizing. Flexible, programmable systems that adapt to changing sheet sizes and production requirements.
OFFERING YOU THE BEST SOLUTION FOR YOUR EXTRUSION LINE
Processing Technologies International (PTi) is a global leader in high-performance sheet extrusion machinery. Engineered to exact standards, PTi systems feature innovative design solutions that deliver superior equipment performance and consistently produce sheet goods that meet the industry’s highest quality standards.
PTi offers a comprehensive range of products and services designed to support today’s sheet producers and the evolving demands of the future. While this overview highlights many available configurations and capabilities, it represents only a portion of the customized extrusion solutions PTi provides for a wide variety of applications.
