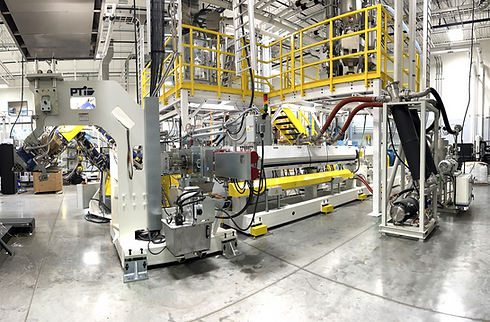

Line #1: SGTSE MultiRESN™ Model 90mm-50D High Vacuum Twin Screw Extrusion System
-
Five component continuous gravimetric loss in weight blender/feeder
-
Dual bolt, 4 cavity and Dual bolt, 4 cavity continuous hydraulic screen changer with backflush
-
70” sheet die with 0.005” - 0.105” (0.127 mm - 2.667 mm) lip opening
-
G-SERIES® GCJ721824 configurable vertical J-stack roll stand
-
X-Ray sheet thickness gauge
-
AntiSTAT™ TRC-72 transfer roll coater; Anti-static coater/dryer for coating top, bottom or both sides
-
ASCW7484/2 semi-automatic cantilevered two position winder with accumulator
-
TITAN® Plus Integrated PLC Control System
-
Edge trim granulator system, plus two edge trim winders
Line #1: Capabilities
-
Capable of processing PET, PLA, PP, PS,PE,etc.
-
10 – 60+ mils PET, PLA, PS
-
14 – 60+ mils PP, HDPE, LDPE
-
50”- 64” net sheet width (1270 mm - 1625mm)
-
6” diameter cores (150 mm)
-
48” (1000 mm) max roll diameter
-
Maximum line speed 160 fpm (49 mpm)
Line #2: SUPER-G HighSPEED™ Model SGHS3500-36D High Speed Extrusion System
-
Four component continuous gravimetric blender/feeder
-
Dual bolt, 4 cavity continuous hydraulic screen changer
-
42” sheet die with 0.010” - 0.050” (0.25 - 2.80 mm) lip opening
-
G-SERIES® Model eGVD541818 vertical downstack cooling and polishing unit with 54” (1,524mm) roll face
-
X-Ray sheet thickness gauge
-
AntiSTAT™ TRC-54 transfer roll coater; Anti-static coater/dryer for coating top, bottom or both sides
-
ACW6640/2 cantilevered two position winder
-
TITAN® Plus Integrated PLC Control System
-
Edge trim granulator system, plus two edge trim winders
Line #2: Capabilities
-
Roll Diameters 12.0 – 48.00" (300 – 1200mm)
-
Face-widths 36.0 – 150.0” (900 – 3800 mm)
-
Direct driven rolls
-
Roll loads up to 1200 PLI (200 N/mm)
-
Vertical, J-Stack or Horizontal configurations
