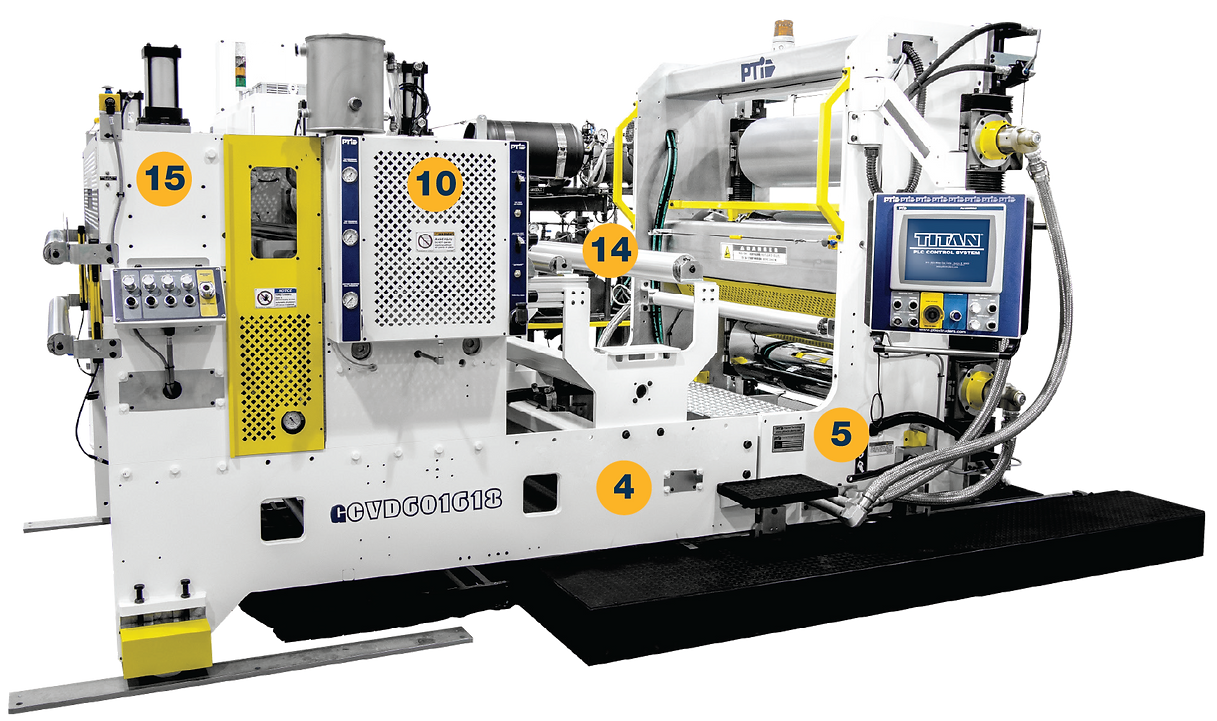

State-of-the-art features:
1
Manual gap positioning with integral rachet (US Pat. #8,152,509)
2
Precision linear bearing roll guides
3
Precision spherical tapered roller bearings
4
Precision linear bearing mounted frame retraction (US Pat. #8,021,140)
5
Manual nip height positioning with integral rachet (US Pat. #8,240,180)
6
Stationary roll temperature water circuits
7
Stationary control panel
8
Leveling pads for quick installation
9
Multi-position operator pendant (TITAN®)
10
Transfer roll coater for top/bottom/both side coating (US Pat. #8,342,118)
11
12
Safety devices throughout
13
Frame superstructure permits high roll loads
14
Gauge scanner for thickness monitoring
15
Integral pull roll unit
16
Configurable frame
G-SERIES® Configurable Horizontal Model GCH661824
This configurable roll stand, the latest in PTi's G-Series®, offers extruders the ability to change downstream configurations for in-line thermoforming and roll stock applications. Standard G-Series® features include high-performance modulating water circuits, mechanical roll lockout, and linear bearing system positioning.
G-SERIES® Configurable Vertical
Model GCVD601618
Flexibility, versatility and reduced downtime. Components such as stations for cooling, surface treatment, slitting and gauging can be added easily, without cutting, welding or machining. Downstream operations can be quickly re-ordered. Utilities like electricity, water and compressed air can be easily integrated and repositioned.
G-Series® Configurable Features
-
Permits greater flexibility and significantly reduced downtime for system modifications
-
Employs a unique design concept which enables easy downstream configuration changes for inline thermoforming and roll stock applications
-
Scalable systems that evolve with changing demands
-
Modified process can take just hours with minimal re-engineering and reduced downtime
-
Enables manufacturers to change the order of downstream operations within a system as well as the potential of sharing modules between other compatible G-Series® Configurable systems
-
An integral energy chain allows utilities to be easily repositioned due to the system's configurable elements
Rollstand Options
-
Spare Temperature Control Circuit
-
Hydraulic Roll Actuation
-
Boosted Air Roll Actuation
-
AUTOGAP™ Servo Hydraulic Roll Gap Adjustment
-
Telescoping Conveyors for Fixed Downstream equipment
-
Motorized Roll Gap Adjustment
-
Motorized Height Adjustment
-
Air Knife System for Thin Gauge (shown)
-
Pneumatic Start-Up Leader Winder
-
Water Cooled Pull Rolls, Idler Rolls
-
Auxiliary Cooling Rolls
