Downstream Components
PTi provides a selection of shears, stacking systems and sheet winding options designed to accommodate a comprehensive range of sheet production applications. From robotic style stackers (single or dual station); to fully automatic winders, PTi offers a single source solution for your sheet handling needs.

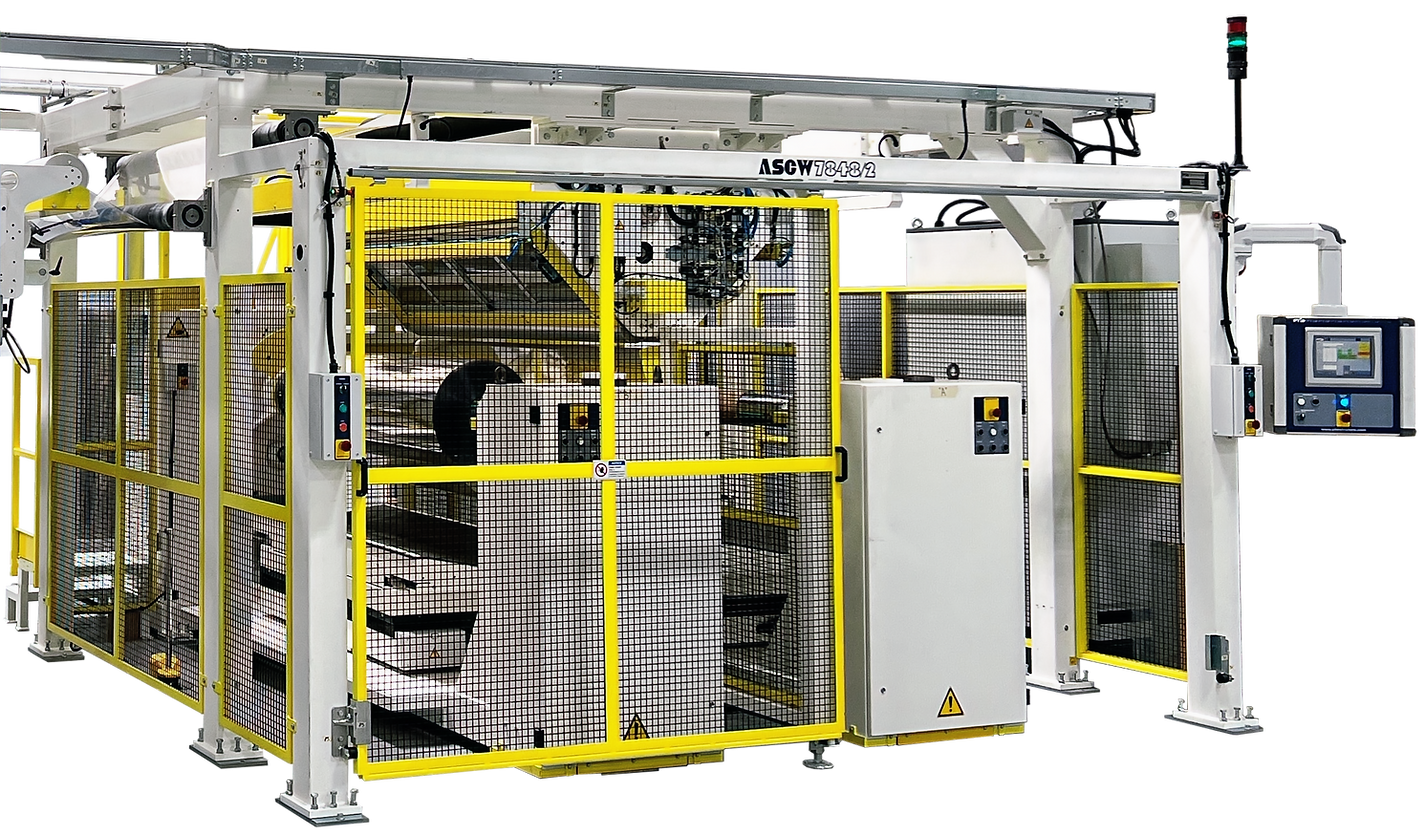

Cantilevered Winders
Common in the industry, the cantilevered winder is used for smaller rolls, typically for sheet widths of 60" and below, with a roll diameter of 40" or less. It is ideal for rolls that are being stored or palleted. It offers a cost-effective approach and ease of use as the shaft does not need to be manually handled/lifted. Rolls are removed with a manual lift cart. This allows winding up to 3 webs for overall sheet widths up to 60" (1525 mm) and roll diameters of 40" (1000 mm) or less.

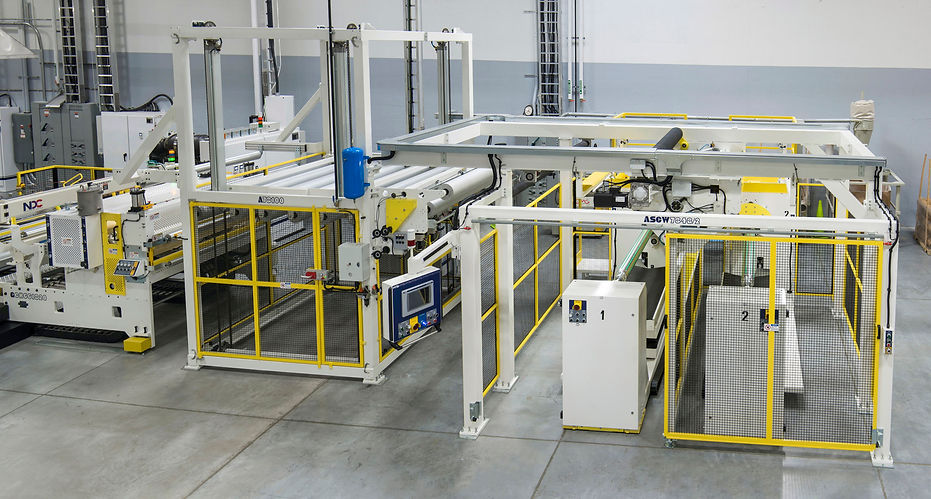

Supported Cantilevered Winders
Similar to the cantilevered winder, but with an end supported cart design, the supported cantilever winder allows capability to wind widths up to 84" (2130 mm) and diameters up to 48" (1220 mm). The shaft is electronically deflated allowing the roll, which sits directly onto the unload cart, to be pulled away from winding shaft, thereby reducing operator time and involvement.
Features
-
Mezzanine provides a delivery pathway of the sheet to the winding positions for precision web tracking and tension control
-
Each pair of winding positions include a driven set of nip rollers, guide idlers and a static eliminator
-
Winding stalls feature task lighting for operator safety during web transfers
-
Safety caging and interlocked doors restrict access during winding and web transfer per safety standards and practices
-
Intuitive controls provide operators with a sensible production grade operator interface for ease of use
-
Heavy duty framework throughout assures robust precision winding solution through equipment life cycle
OFFERING YOU THE BEST SOLUTION FOR YOUR EXTRUSION LINE
Processing Technologies International (PTi) is a global leader in high-performance sheet extrusion machinery. Engineered to exact standards, PTi systems feature innovative design solutions that deliver superior equipment performance and consistently produce sheet goods that meet the industry’s highest quality standards.
PTi offers a comprehensive range of products and services designed to support today’s sheet producers and the evolving demands of the future. While this overview highlights many available configurations and capabilities, it represents only a portion of the customized extrusion solutions PTi provides for a wide variety of applications.
